Dobinsons 40mm Gas Lift Kit to suit Mazda BT-50 Series II 2011-2020

Name: Dobinsons 40mm Gas Lift Kit to suit Mazda BT-50 Series II 2011-2020
Brand: Trundles Automotive
SKU: BT50S240GAS-1
Price: 2540.0 NZD
Availability: InStock

BT50S240GAS-1

In stock

Select your front springs: No Load (40mm Lift) 50-90Kg (40mm Lift) No Load (55mm Lift) 50-100Kg (55mm Lift)

Select your rear springs: 0-100Kg Constant Load (40mm Lift) 280Kg Constant Load (40mm Lift) 500Kg Constant Load (40mm Lift) 150Kg Constant Load (50mm Lift - Parabolic) No Load (60mm Lift - Parabolic)

$2,540.00

Tax included.

PRE-ORDER INFORMATION

If this Kit is showing as "Pre-Order" please complete the product enquiry form on this page to confirm which items are out of stock. Sometimes, there is only one item that is out of stock which may be able to be substituted to complete the kit.

Disclaimer: It is the purchaser’s responsibility to ensure all products and the installation thereof meet current LVV requirements, where applicable.

A wheel alignment must be performed after the installation of upgraded suspension parts. After a suspension lift, most ADAS (Advanced Driver Assistance Systems) equipped vehicles will require calibration.

It is the purchaser's responsibility to ensure the ADAS re-calibration is carried out by a specialised technician to guarantee the safety of the vehicle and its occupants.

DETAILS
COMPONENTS
EXTRAS
IMPORTANT!

DETAILS

Dobinsons 40mm Gas Lift Kit to suit Mazda BT-50 Series II 08/2011-2020

Suits 4x4 Models Only.

Please use the drop down menu to select the correct spring rates depending on your vehicles accessories.

Type: BT-50
Model: UP/UR
Year: 10/2011 - Mid 2020
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 40mm - 55mm Lift
Rear Lift: 40mm - 60mm Lift
Detail:
- Twin Tube Nitrogen Gas Charged Shock Absorbers
- Front shocks come pre-assembled for ease of installation.

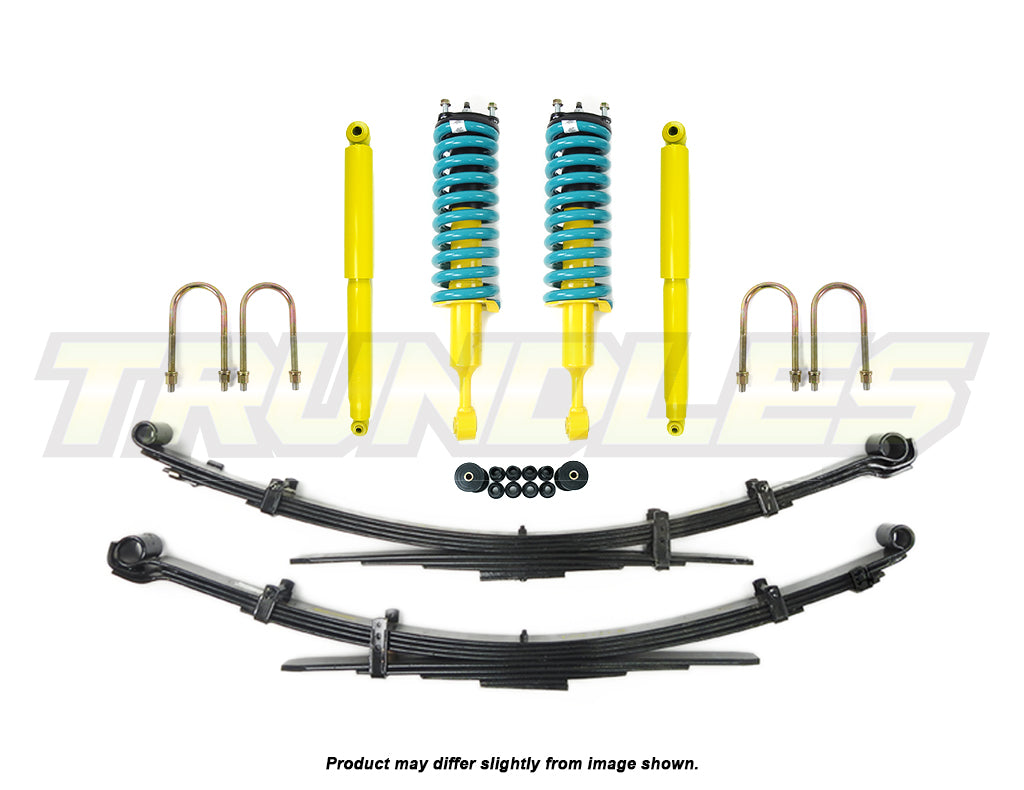

COMPONENTS

Front:
2x Dobinsons Heavy Duty Front Shocks - GS19-092
1x Pair Dobinsons Front Springs
2x Trundles Strut Top Mounts - TOP3

Rear:
2x Dobinsons Heavy Duty Rear Shocks - GS19-081T
2x Dobinsons Rear Leaf Springs
1x Dobinsons Leaf Bush Kit - PB19-1104K
2x Dobinsons U-Bolt Kits - UB21-466K

EXTRAS

Dobinsons Rear Greasable Shackles - SK19-058
Dobinsons Rear Greasable Pins - SP59-060
Trundles Bolt In Diff Drop - MAZ-007
Tail Shaft Spacer Kit - TSS001

For a lower replacement bush to fit GS19-092, please click here

IMPORTANT!

The stock Upper Control Arms can hit the chassis seam on droop in some models.
With the vehicle on the ground, you can remove the top hat crush tube and shorten it around 10mm then refit. This in turn can shorten the shock extended length to give clearance - Some top hats have a longer crush tube which seems to be the cause of this.

WHATS INCLUDED
