Dobinsons 50mm Gas Lift Kit to suit Toyota Hilux N70 KUN26 2005-2015

Name: 08654 | Dobinsons 50mm Gas Lift Kit to suit Toyota Hilux N70 KUN26 2005-2015
Brand: KITHEADER
SKU: N70-50-GAS-1
Price: 2550.0 NZD
Availability: InStock

N70-50-GAS-1

Select your front springs:

0-20Kg (Comfort Option) 50-100Kg (Comfort Option) 0-60Kg 70-90Kg

Select your rear springs:

0-280Kg Constant Load (25mm Lift) 0-100Kg Constant Load (50mm Lift) 280Kg Constant Load (50mm Lift) 450Kg Constant Load (50mm Lift) 0-100Kg Constant Load (50mm Lift Comfort Option - Parabolic)

Pre-Order

$2,550.00

$2,550.00 ~~$0.00~~

Tax included. Shipping calculated at checkout.

PRE-ORDER INFORMATION

If this Kit is showing as "Pre-Order" please complete the product enquiry form on this page to confirm which items are out of stock. Sometimes, there is only one item that is out of stock which may be able to be substituted to complete the kit.

Disclaimer: It is the purchaser’s responsibility to ensure all products and the installation thereof meet current LVV requirements, where applicable.

DETAILS
COMPONENTS
EXTRAS

DETAILS

Dobinsons 50mm Gas Lift Kit to suit Toyota Hilux N70 KUN26 2005-2015

Suits KUN26 3.0L T/D Models Only.

- The N70 Hilux sits nose down from factory, if you are chasing an even ride height you will need to only lift the front 25mm (1") higher than the rear. If you want full 50mm lift in rear, you will have to run 75mm (3") in front.

- If you have a Single Cab or Petrol N70, we recommend that you lower the specifications of the coil spring by one part number for best result. If you are unsure on which options to select, please feel free to contact us here before purchasing.

- NON-ABS vehicles are required to have a Brake Adjuster installed when lifting the vehicle.

Please use the drop down menu to select the correct spring rates depending on your vehicles accessories.

Type: Hilux
Model: N70
Year: 2005 - 2015
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 50mm Lift
Rear Lift: 25mm - 50mm Lift
Detail:
- KUN26 3.0L T/D Models Only
- Twin Tube Nitrogen Gas Charged Shock Absorbers
- Front shocks come pre-assembled for ease of installation.

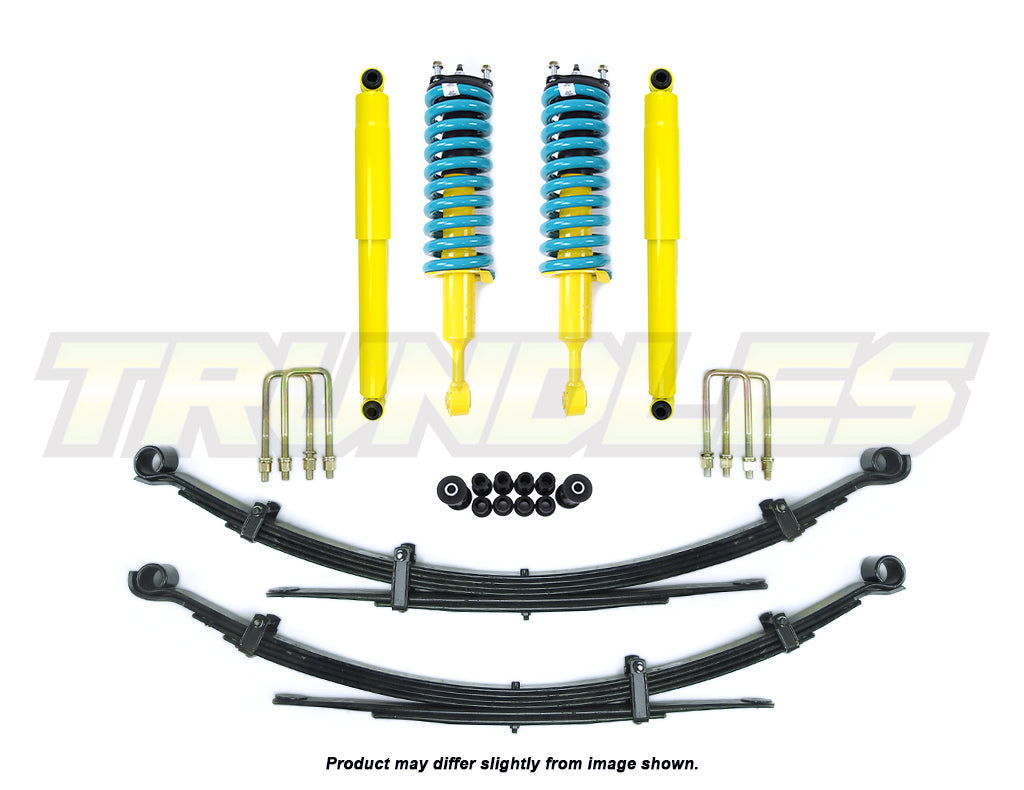

COMPONENTS

Front:
2x Dobinsons Heavy Duty Front Shocks - GS59-220
1x Pair Dobinsons Front Springs
2x Trundles Strut Mounts - TOP2

Rear:
2x Dobinsons Heavy Duty Rear Shocks - GS59-649
1x Pair Dobinsons Rear Leaf Springs
1x Dobinsons Leaf Bush Kit - PB59-1094K
2x Dobinsons U-Bolt Kits

EXTRAS

Dobinsons Rear Brake Adjuster (Required for NON-ABS vehicles) - BA59-002
Dobinsons Rear Grease-able Shackles - SK59-053
Dobinsons Rear Grease-able Pins - SP59-060
Trundles Spacer Diff Drop - HIL-005

For upper and lower replacement bushes to fit GS59-649, please click here

For a lower replacement bush to fit GS59-220, please click here
