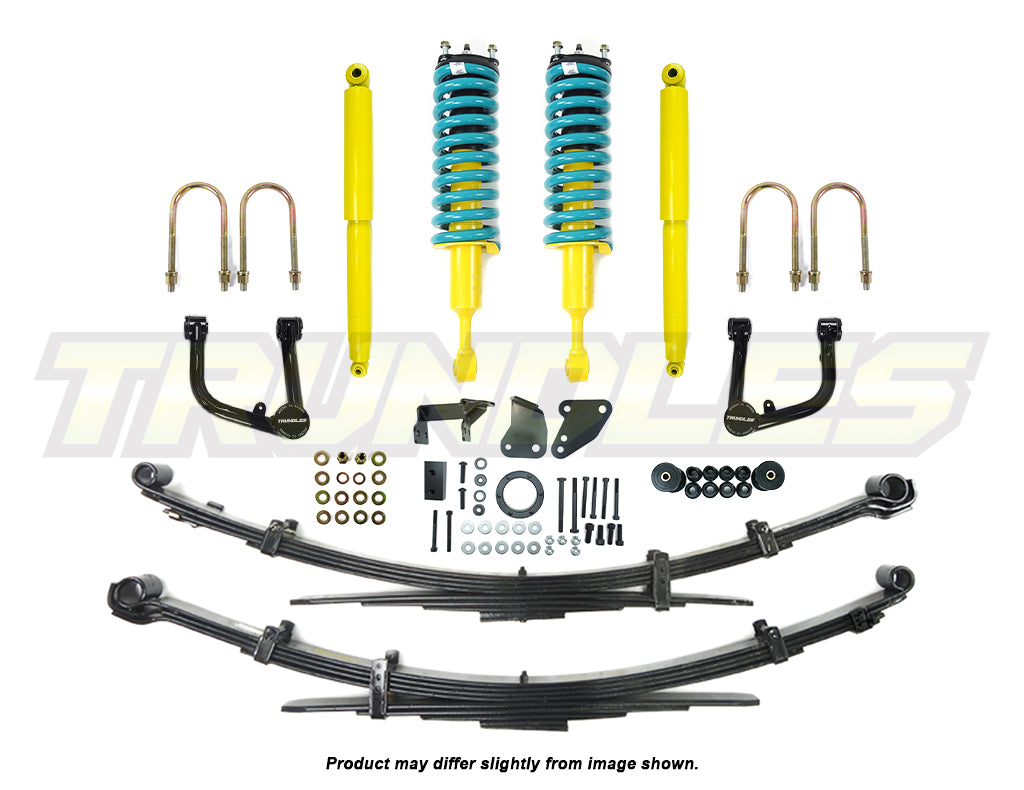

Dobinsons 75mm Gas Lift Kit to suit Mazda BT-50 Series II 2011-2020

Name: Dobinsons 75mm Gas Lift Kit to suit Mazda BT-50 Series II 2011-2020
Brand: Trundles Automotive
SKU: BT50S275GAS-1
Price: 3700.0 NZD
Availability: InStock

BT50S275GAS-1

In stock

Select your front springs: No Load (75mm Lift) 50-100Kg (75mm Lift)

Select your rear springs: 0-100Kg Constant Load (40mm Lift) 280Kg Constant Load (40mm Lift) 500Kg Constant Load (40mm Lift) 150Kg Constant Load (50mm Lift - Parabolic) No Load (60mm Lift - Parabolic)

$3,700.00

Tax included.

PRE-ORDER INFORMATION

If this Kit is showing as "Pre-Order" please complete the product enquiry form on this page to confirm which items are out of stock. Sometimes, there is only one item that is out of stock which may be able to be substituted to complete the kit.

Disclaimer: This product requires an LVV Certification to meet the current legal requirements for use on NZ public roads.

A wheel alignment must be performed after the installation of upgraded suspension parts. After a suspension lift, most ADAS (Advanced Driver Assistance Systems) equipped vehicles will require calibration.

It is the purchaser's responsibility to ensure the ADAS re-calibration is carried out by a specialised technician to guarantee the safety of the vehicle and its occupants.

Disclaimer: This product requires an LVV Certification to meet the current legal requirements for use on NZ public roads.

DETAILS
COMPONENTS
EXTRAS

DETAILS

Dobinsons 75mm Gas Lift Kit to suit Mazda BT-50 Series II 08/2011-2020

Suits 4x4 Models Only.

We strongly recommend you run an adjustable coil over when opting for a 75mm front lift. This allows you to dial in the ride height while also accommodating varying loads (future proofs your lift if you want to add a bullbar and/or winch in future), and gives you the ability to make any adjustments as necessary come certification time.

If you are chasing a level look, we recommend 40mm rear springs.

Please use the drop down menu to select the correct spring rates depending on your vehicles accessories.

Type: BT-50
Model: UP/UR
Year: 10/2011 - Mid 2020
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 75mm Lift
Rear Lift: 40mm - 60mm Lift
Detail:
- Twin Tube Nitrogen Gas Charged Shock Absorbers

COMPONENTS

Front
2x Dobinsons Heavy Duty Front Shocks - GS19-092
1x Pair Dobinsons Front Springs
2x Trundles Strut Top Mounts - TOP3
1x Pair Trundles Upper Control Arms - UCA3957R
1x Trundles Bolt In Diff Drop - MAZ-007

Rear
2x Dobinsons Heavy Duty Rear Shocks - GS19-081T
2x Dobinsons Rear Leaf Springs
1x Dobinsons Leaf Bush Kit - PB19-1104K
2x Dobinsons U-Bolt Kits - UB21-466K
1x Tail Shaft Spacer Kit - TSS001

EXTRAS

Dobinsons Rear Greasable Shackles - SK19-058
Dobinsons Rear Greasable Pins - SP59-060

For a lower replacement bush to fit GS19-081T, please click here

For a lower replacement bush to fit GS19-092, please click here
