Dobinsons Basic IMS Height Adjustable Lift Kit to suit Mazda BT-50 Series II 2011-2020
- Price
- $1,399
Note: If this Kit is showing as "Pre-Order" please contact us to confirm which items are out of stock. Sometimes, there is only one item that is out of stock which may be able to be substituted to complete the kit. Contact us here.
- DETAILS
- COMPONENTS
- EXTRAS

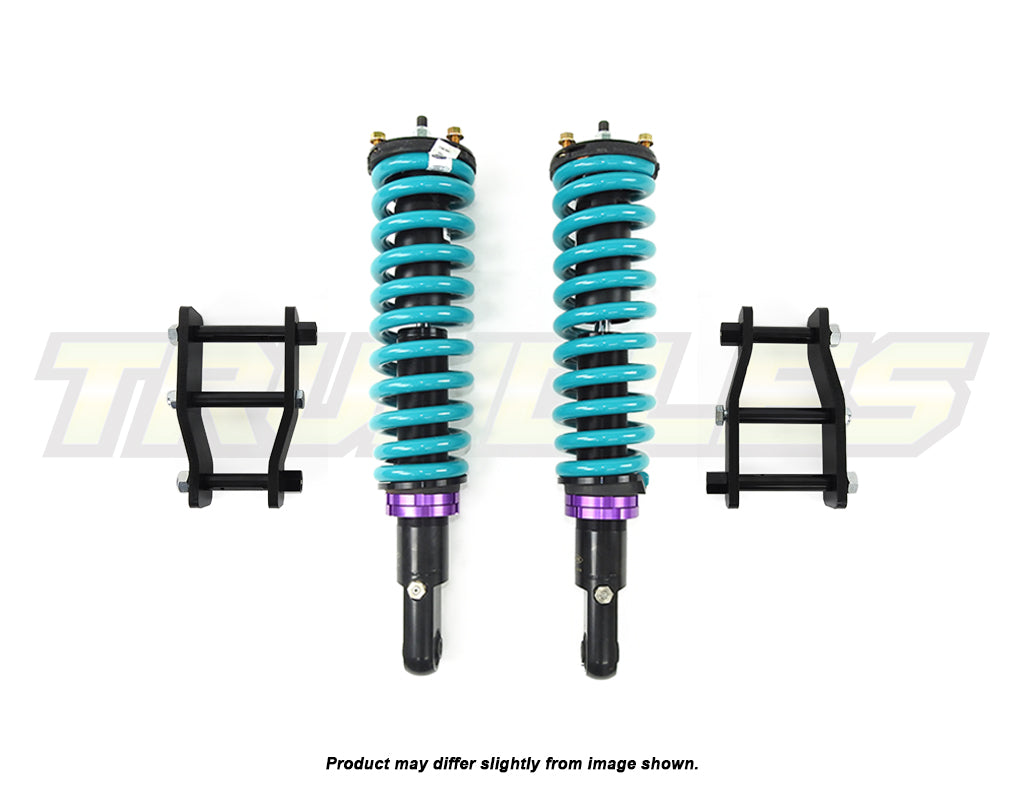

Dobinsons Basic IMS Height Adjustable Lift Kit to suit Mazda BT-50 Series II 2011-2020
A maximum of a 75mm lift setting will be used when pre-assembling
A 100mm Lift is achievable with extra components. A 100mm Lift will most likely NOT pass a NZ certification as this will decrease the suspension droop travel, it is up to the customer to set these any higher than a 75mm Lift.
Looking for a quick and easy lift for your BT-50? We have the answer!
Simply unbolt your factory struts and replace with these direct bolt-in front pre-assembled shocks.
Please use the drop down menu to select your model type, lift amount and the correct spring rates depending on your vehicles accessories.
Type: BT-50
Model: UP/UR
Year: 10/2011 - Mid 2020
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 35mm - 75mm Lift
Rear Lift: 25mm - 50mm Lift
Detail:
- Monotube Internal Reservoir Shock Absorbers
- These front struts are pre-assembled in our workshop and ready to go.
KIT CONTAINS:
Front:
2x Dobinsons IMS Shocks - IMS19-50092
1x Pair Dobinsons Springs
2x Trundles Strut Top Mounts - TOP3
Rear:
1x Trundles Extended Shackles
Disclaimer: This product requires an LVV Certification to meet the current legal requirements for use on NZ public roads.
A wheel alignment must be performed after the installation of upgraded suspension parts. After a suspension lift, most ADAS (Advanced Driver Assistance Systems) equipped vehicles will require calibration.
It is the purchaser's responsibility to ensure the ADAS re-calibration is carried out by a specialised technician to guarantee the safety of the vehicle and its occupants.
