STEDI Lower Grill Light Bar Mounting Bracket to suit Ford Ranger PX2 / Everest 2015-2018
Note 1: Price is for the bracket only, light bars are sold separately.

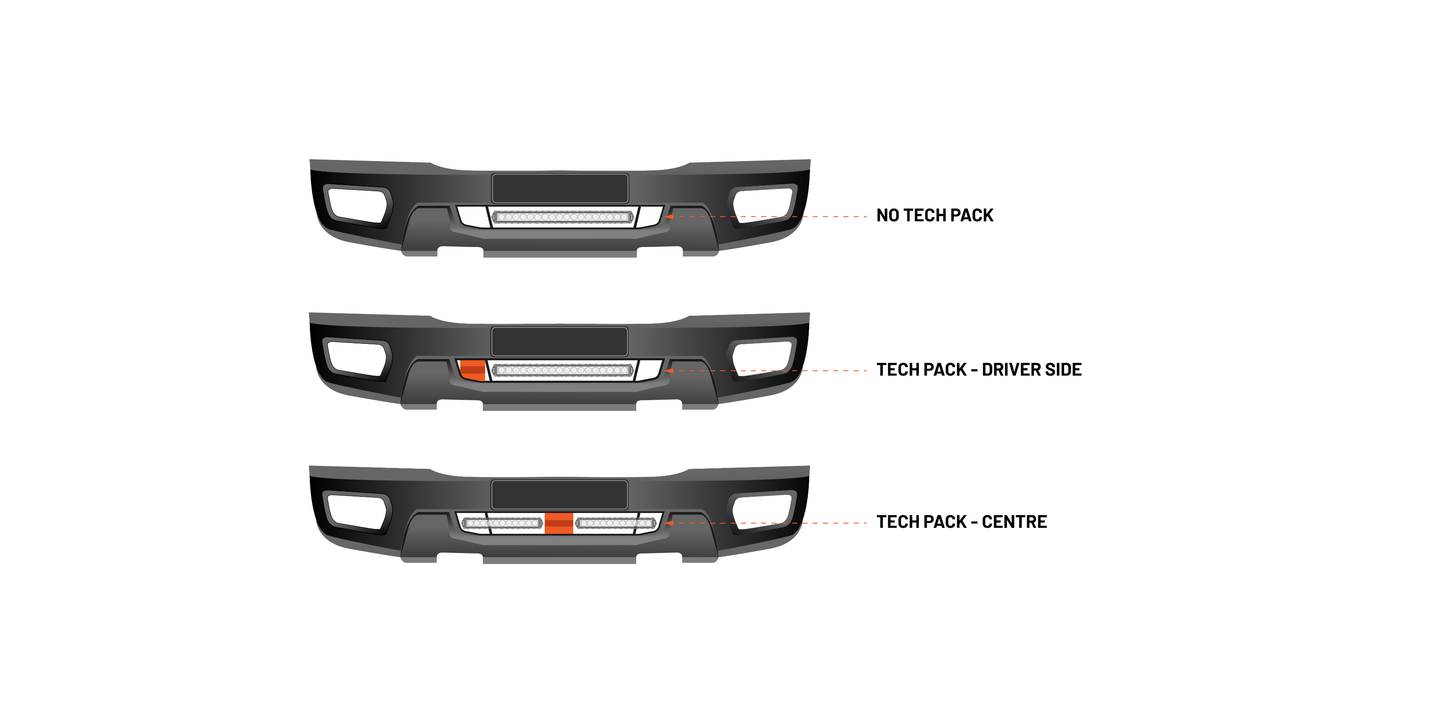

Note 2: For installation on models with tech packs in the center, holes will need to be drilled for the installation of the 2 inner brackets on either side of the tech pack (applies to both the Ranger & Everest platform).
Includes:
1x Set Ford Ranger / Everest Lower Grille Mounting Bracket
2x Stainless Steel Bolts
2x Flat Stainless Steel Washer
2x Nylock Nut
Details:

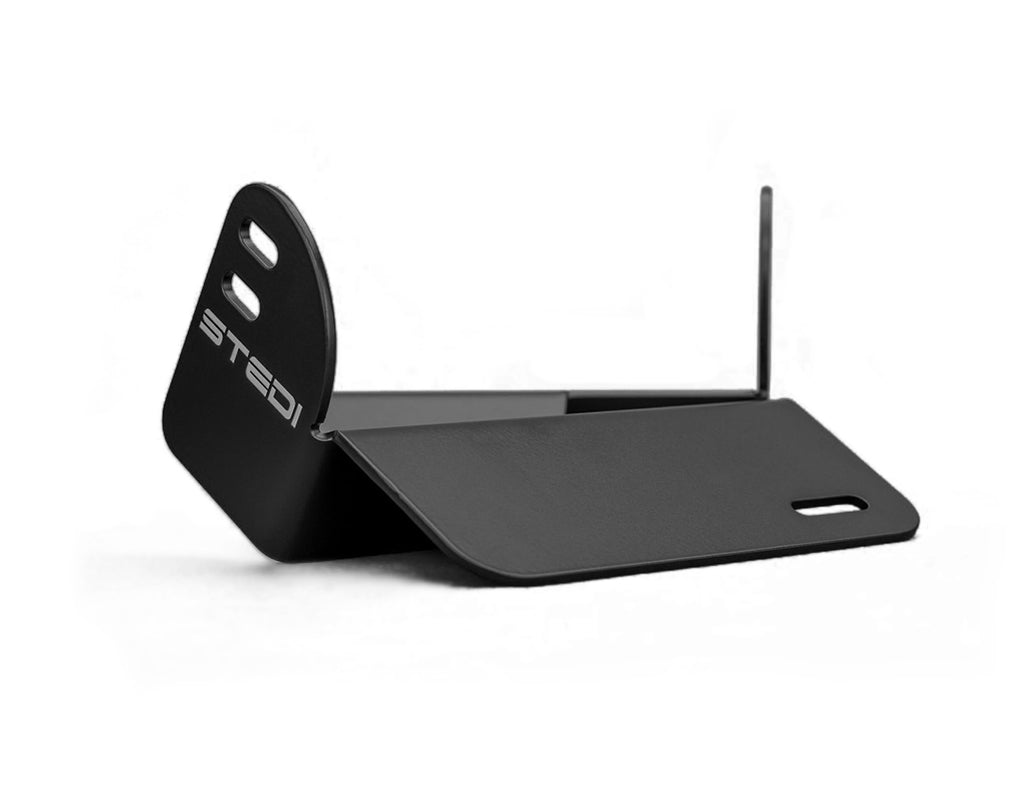

Ford Ranger & Everest Lower Grill Light Bar Mounting Bracket MK2
Designed to fit Ford Ranger (PX2/PX3) & Everest 2015 to 2018 (UA Chassis) all sub-models including XL, XLS, XLT, Wildtrak & FX4 / Trend, Ambient, Titanium. Will also fit Ford Ranger Raptor and the newer PX3 Ranger without a radar box in the lower grille.
Manufactured with 3mm Stainless Steel with a satin powder coat, and designed to be fastened to pre-existing holes which are already present on the inner steel support. This is a completely non-intrusive install meaning that no new holes need to be made, nor do sections of the front bumper need any cutting or modifying.
The end result is a very robust, stealth installation.
The design is optimized to suit:
STEDI™ ST3K 21.5" LED Light Bar (Models with LHS Radar or no Radar)
STEDI™ ST3K 11.5" LED Light Bar (Models with Central Radar, one mounted on each side of the radar)
Black Powder Coated Finish
3 Series Stainless Steel
Designed to minimize disruption of air-flow
No need to remove the front bumper
Bolts to pre-existing holes
No drilling required, bolt and nut kit included (Excluding PXIII and Everest with Tech-Pack in centre, Ranger Raptor, and PX3 XLS)
TECH SPECS
| MATERIAL |
3mm Stainless Steel |
| FINISH |
Powder Coat |
