Trundles Diff Drop Kit to suit Nissan Navara D22 1997-2008

Trundles Diff Drop Kit to suit Nissan Navara D22 1997-2008

NAV-014

In stock
$499.00
$499.00 $0.00
Tax included.

Disclaimer: This product requires an LVV Certification to meet the current legal requirements for use on NZ public roads. A wheel alignment must be performed after the installation of upgraded suspension parts. It is the purchaser’s responsibility to ensure all products and the installation thereof meet current LVV requirements, where applicable.

Disclaimer: This product requires an LVV Certification to meet the current legal requirements for use on NZ public roads.

DETAILS

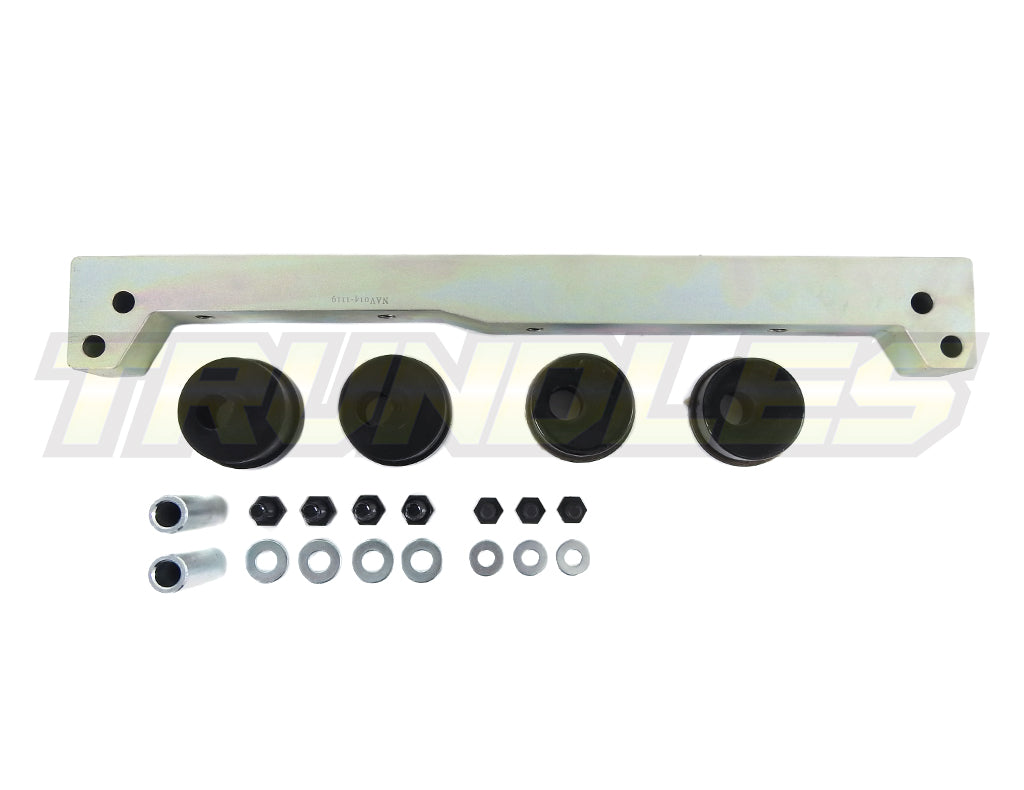

Trundles Diff Drop Kit to suit Nissan Navara D22 1997-2008

Includes:
1x Navara D22 Diff Drop System - NAV-014

Details:
Our Trundles Diff Drop is a solution that allows lowering of the diff to reduce CV angle when a lift is installed. The front OE pressed steel X-member is replaced with a solid Xmm CNC machined X-member and is designed to bolt into position without modification and accept the OE bash plate if required.

The front rubber bushed diff mounts are re-used and bolted to the new x-member but in the rear X-member a Poly-urethane bush is used for 2 benefits: first is to drop the rear of the diff down as the crush tube is offset and the second is to locate the diff to reduce diff movement under torque, thus reducing the risk of further CV damage due to the joint pulling apart while in motion.

The front X-member plus the rear offset bushes combine to drop the diff down and reduce CV angle to give greater joint life and reduce the risk of damage when off roading.

Drops the diff approx 25mm.

Make Model Years
NISSAN Navara D22 1997–2015
