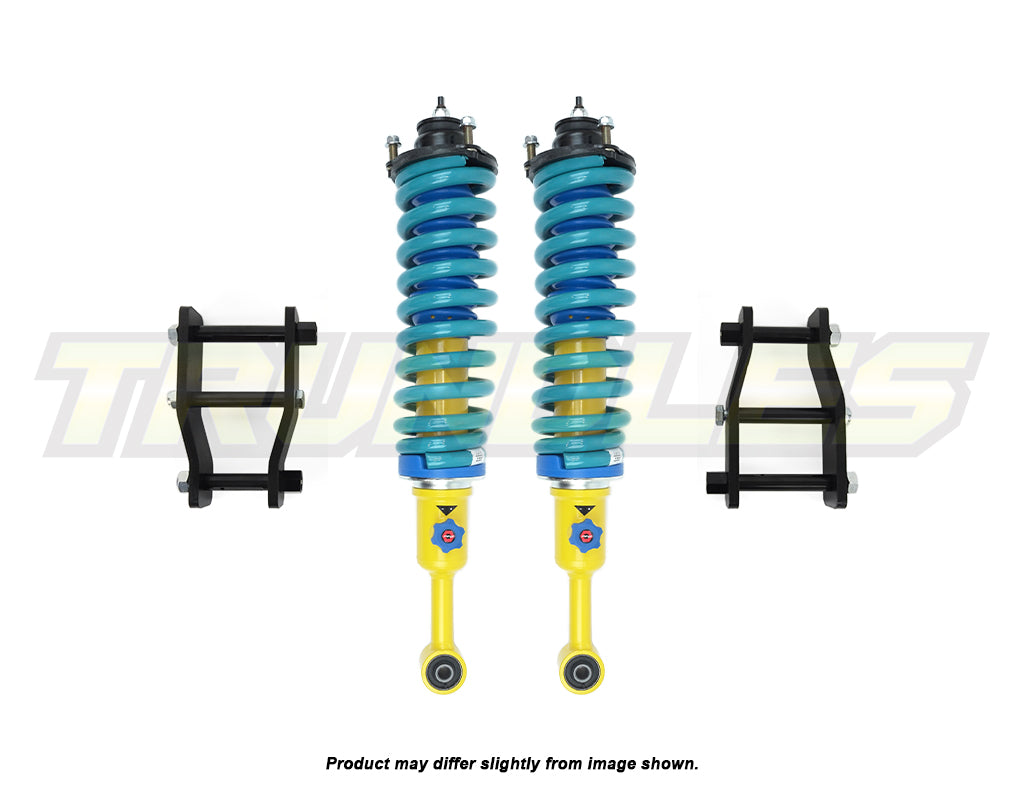

Profender Basic Lift Kit with Adjustable Damping to suit Ford Ranger PX1/2 2011-2018

Profender Basic Lift Kit with Adjustable Damping to suit Ford Ranger PX1/2 2011-2018

NOTE:
- These shocks have 4-Stage Adjustable Damping and are fixed height only.
- We strongly recommend you run an adjustable coil over when opting for a 75mm front lift. This allows you to dial in the ride height while also accommodating varying loads (future proofs your lift if you want to add a bullbar and/or winch in future), and gives you the ability to make any adjustments as necessary come certification time.
- Not Suitable for PX3 Models

Please use the drop down menu to select your model type, lift amount and the correct spring rates depending on your vehicles accessories.

Type: Ranger
Model: PX1/2
Year: 08/2011 - Mid 06/2018
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 35mm - 75mm Lift
Detail:
- 4x4 Chassis Mounted Front Bump Stop Models Only
- Turn-Key Start Models Only
- Also Suits 4x2 High-Rider
- Twin Tube Adjustable Damping Shock Absorbers
- These front struts are pre-assembled in our workshop and ready to go.

Front:
2x Profender 4-Stage Damping Front Shock Absorbers - PAG-1603A50
1x Pair Dobinsons Springs
2x Trundles Strut Top Mounts - TOP3

Rear:
1x Trundles Extended Shackles

Dobinsons Rear Greasable Pins - SP59-060
Trundles Bolt In Diff Drop - MAZ-007
Tail Shaft Spacer Kit - TSS001
Upper Control Arms - UCA3957R

The stock Upper Control Arms can hit the chassis seam on droop in some models.
With the vehicle on the ground, you can remove the top hat crush tube and shorten it around 10mm then refit. This in turn can shorten the shock extended length to give clearance - Some top hats have a longer crush tube which seems to be the cause of this.
