Profender 40mm MRA Lift Kit to suit Ford Ranger PX1/2 2011-2018

Name: Profender 40mm MRA Lift Kit to suit Ford Ranger PX1/2 2011-2018
Brand: Trundles Automotive
SKU: PX1240TSA-1
Price: 3670.0 NZD
Availability: InStock

PX1240TSA-1

In stock

Select your front springs: No Load (40mm Lift) 50-90Kg (40mm Lift) No Load (55mm Lift) 50-100Kg (55mm Lift)

Select your rear springs: 0-100Kg Constant Load (40mm Lift) 280Kg Constant Load (40mm Lift) 500Kg Constant Load (40mm Lift) 150Kg Constant Load (50mm Lift - Parabolic) No Load (60mm Lift - Parabolic)

$3,670.00

Tax included.

PRE-ORDER INFORMATION

If this Kit is showing as "Pre-Order" please complete the product enquiry form on this page to confirm which items are out of stock. Sometimes, there is only one item that is out of stock which may be able to be substituted to complete the kit.

Disclaimer: This product requires an LVV Certification to meet the current legal requirements for use on NZ public roads.

A wheel alignment must be performed after the installation of upgraded suspension parts. After a suspension lift, most ADAS (Advanced Driver Assistance Systems) equipped vehicles will require calibration.

It is the purchaser's responsibility to ensure the ADAS re-calibration is carried out by a specialised technician to guarantee the safety of the vehicle and its occupants.

Disclaimer: This product requires an LVV Certification to meet the current legal requirements for use on NZ public roads.

DETAILS
COMPONENTS
EXTRAS
IMPORTANT!

DETAILS

Profender 40mm MRA Lift Kit to suit Ford Ranger PX1/2 2011-2018

- Suits 4x4 Models Only.
- Anodising colours may vary between shocks due to available stock.

Please use the drop down menu to select the correct spring rates depending on your vehicles accessories.

Type: Ranger
Model: PX1/2
Year: 08/2011 - Mid 06/2018
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 40mm - 55mm Lift
Rear Lift: 40mm - 60mm Lift
Detail:
- 4x4 Strut Mounted Front Bump Stop Models Only
- Turn-Key Start Models Only
- Also Suits 4x2 High-Rider
- Monotube Remote Reservoir Shock Absorbers
- Front struts come pre-assembled for ease of installation.

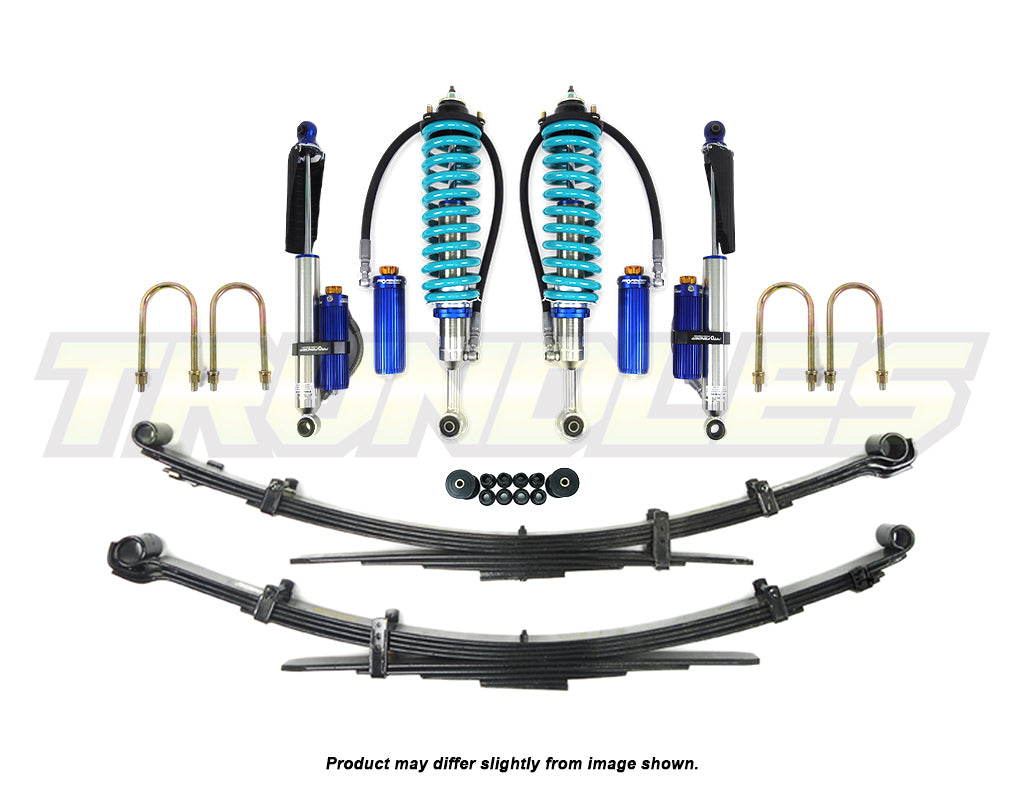

COMPONENTS

Front
1x Profender MRA Left Front Shock Absorber - TSA4-1603A50L
1x Profender MRA Right Front Shock Absorber - TSA4-1603A50R
1x Pair Dobinsons Front Springs
2x Trundles Strut Mounts - TOP3

Rear
1x Profender MRA Left Rear Shock Absorber - PHMA-4045PL
1x Profender MRA Right Rear Shock Absorber - PHMA-4045PR
2x Dobinsons Rear Leaf Springs
1x Dobinsons Leaf Bush Kit - PB19-1104K
2x Dobinsons U-Bolt Kits - UB21-466K

EXTRAS

Dobinsons Rear Greasable Shackles - SK19-058
Dobinsons Rear Greasable Pins - SP59-060
Upper Control Arms - UCA3957R
Trundles Bolt In Diff Drop - MAZ-007
Tail Shaft Spacer Kit - TSS001

IMPORTANT!

The stock Upper Control Arms can hit the chassis seam on droop in some models.
With the vehicle on the ground, you can remove the top hat crush tube and shorten it around 10mm then refit. This in turn can shorten the shock extended length to give clearance - Some top hats have a longer crush tube which seems to be the cause of this.
