Dobinsons 50mm MRA Height Adjustable Lift Kit to suit Toyota Hilux N70 KUN26 2005-2015

Price
$4,040
Front Springs:0-20Kg (Comfort Option)
Rear Springs:0-280Kg Constant Load (25mm Lift)
Usually Ships Within 24 Hours, Unless on Pre-Order

Note: If this Kit is showing as "Pre-Order" please contact us to confirm which items are out of stock. Sometimes, there is only one item that is out of stock which may be able to be substituted to complete the kit. Contact us here.

Dobinsons 50mm MRA Height Adjustable Lift Kit to suit Toyota Hilux N70 KUN26 2005-2015

Suits KUN26 3.0L T/D Models Only.

Important notes regarding lift kits can be found in the IMPORTANT tab! Please read thoroughly before making your order.

Please use the drop down menu to select the correct spring rates depending on your vehicles accessories.

Type: Hilux
Model: N70
Year: 2005 - 2015
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 50mm Lift
Rear Lift: 25mm - 50mm Lift
Detail:
- KUN26 3.0L T/D Models Only
- Monotube Remote Reservoir Shock Absorbers
- Front shocks come pre-assembled for ease of installation.

The N70 Hilux sits nose down from factory, if you are chasing an even ride height you will need to only lift the front 25mm (1") higher than the rear. If you want full 50mm lift in rear, you will have to run 75mm (3") in front, please see note 2 for more info.

If you have a Single Cab or Petrol N70, we recommend that you lower the specifications of the coil spring by one part number for best result. If you are unsure on which options to select, please feel free to contact us here before purchasing.

A maximum of 75mm lift setting will be used when pre-assembling. You will also require Upper Control Arms and a Diff Drop at 75mm. A 100mm Lift is achievable with extra components. This will most likely NOT pass a NZ certification as this will decrease the suspension droop travel, and is up to the customer to set these any higher than a 75mm Lift.

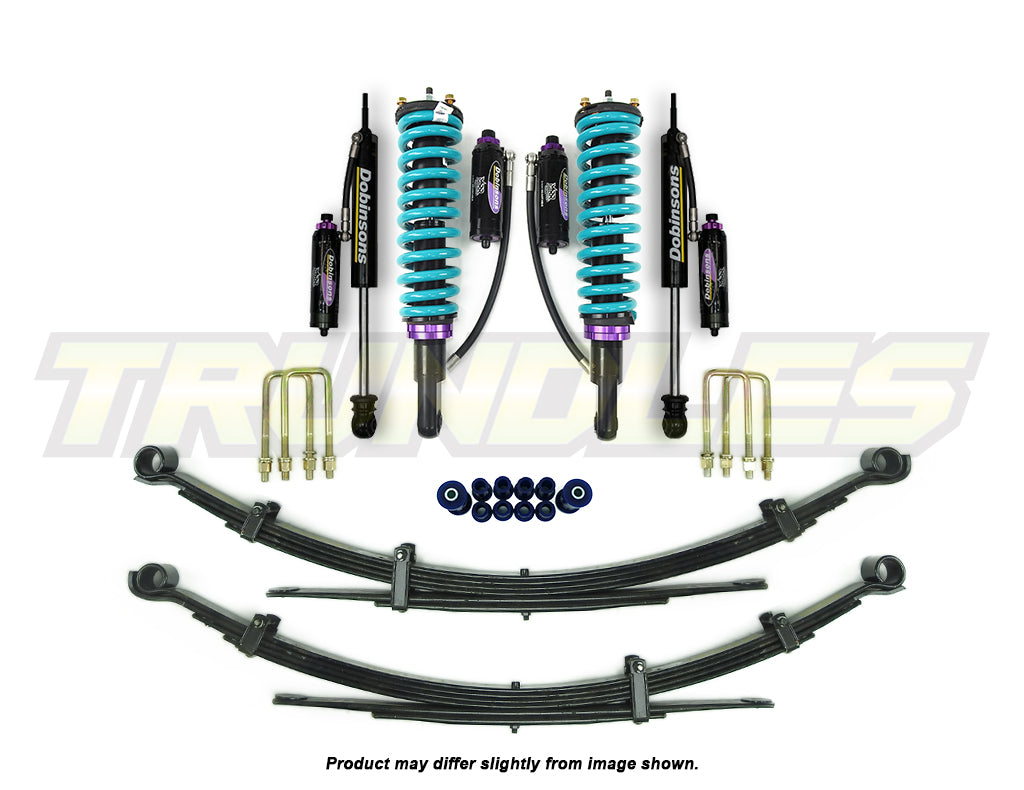

KIT CONTAINS:

Front:
2x Dobinsons MRA Front Shocks - MRA59-A220
1x Pair Dobinsons Front Springs
2x Trundles Strut Mounts - TOP2

Rear:
2x Dobinsons MRA Rear Shocks - MRA59-A649
1x Pair Dobinsons Rear Leaf Springs
1x Dobinsons Leaf Bush Kit - PB59-1094K
2x Dobinsons U-Bolt Kits

Dobinsons Rear Grease-able Shackles - SK59-053
Dobinsons Rear Grease-able Pins - SP59-060
Trundles Spacer Diff Drop - HIL-005

If you require a rebuild kit for MRA59-A220, please click here

For a lower replacement bush to fit MRA59-A220, please click here

If you require fitting instructions for the MRA59-220 shock, please click here

Disclaimer: This product requires an LVV Certification to meet the current legal requirements for use on NZ public roads.

A wheel alignment must be performed after the installation of upgraded suspension parts. After a suspension lift, most ADAS (Advanced Driver Assistance Systems) equipped vehicles will require calibration.

It is the purchaser's responsibility to ensure the ADAS re-calibration is carried out by a specialised technician to guarantee the safety of the vehicle and its occupants.
