Dobinsons 50mm IMS Height Adjustable Lift Kit to suit Toyota Hilux N70 KUN26 2005-2015

Name: Dobinsons 50mm IMS Height Adjustable Lift Kit to suit Toyota Hilux N70 KUN26 2005-2015
Brand: Trundles Automotive
SKU: N7050IMS-1
Price: 3300.0 NZD
Availability: InStock

N7050IMS-1

Pre-Order / Made To Order

Select your front springs: 0-20Kg (Comfort Option) 50-100Kg (Comfort Option) 0-60Kg 70-90Kg

Select your rear springs: 0-280Kg Constant Load (25mm Lift) 0-100Kg Constant Load 280Kg Constant Load 450Kg Constant Load 0-100Kg Constant Load (Comfort Option - Parabolic)

$3,300.00

Tax included.

PRE-ORDER INFORMATION

If this Kit is showing as "Pre-Order" please complete the product enquiry form on this page to confirm which items are out of stock. Sometimes, there is only one item that is out of stock which may be able to be substituted to complete the kit.

Disclaimer: This product requires an LVV Certification to meet the current legal requirements for use on NZ public roads. A wheel alignment must be performed after the installation of upgraded suspension parts. It is the purchaser’s responsibility to ensure all products and the installation thereof meet current LVV requirements, where applicable.

Disclaimer: This product requires an LVV Certification to meet the current legal requirements for use on NZ public roads.

DETAILS
IMPORTANT!
COMPONENTS
EXTRAS

DETAILS

Dobinsons 50mm IMS Height Adjustable Lift Kit to suit Toyota Hilux N70 KUN26 2005-2015

Suits KUN26 3.0L T/D Models Only.

Important notes regarding lift kits can be found in the IMPORTANT tab! Please read thoroughly before making your order.

Please use the drop down menu to select the correct spring rates depending on your vehicles accessories.

Type: Hilux
Model: N70
Year: 2005 - 2015
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 50mm Lift
Rear Lift: 25mm - 50mm Lift
Detail:
- KUN26 3.0L T/D Models Only
- Monotube Internal Reservoir Shock Absorbers
- Front shocks come pre-assembled for ease of installation.

IMPORTANT!

The N70 Hilux sits nose down from factory, if you are chasing an even ride height you will need to only lift the front 25mm (1") higher than the rear. If you want full 50mm lift in rear, you will have to run 75mm (3") in front, please see below for more info.

If you have a Single Cab or Petrol N70, we recommend that you lower the specifications of the coil spring by one part number for best result. If you are unsure on which options to select, please feel free to contact us here before purchasing.

You will also require Upper Control Arms and a Diff Drop at 75mm. A 100mm Lift is achievable with extra components. This will most likely NOT pass a NZ certification as this will decrease the suspension droop travel, and is up to the customer to set these any higher than a 75mm Lift.

NON-ABS vehicles are required to have a Brake Adjuster installed when lifting the vehicle.

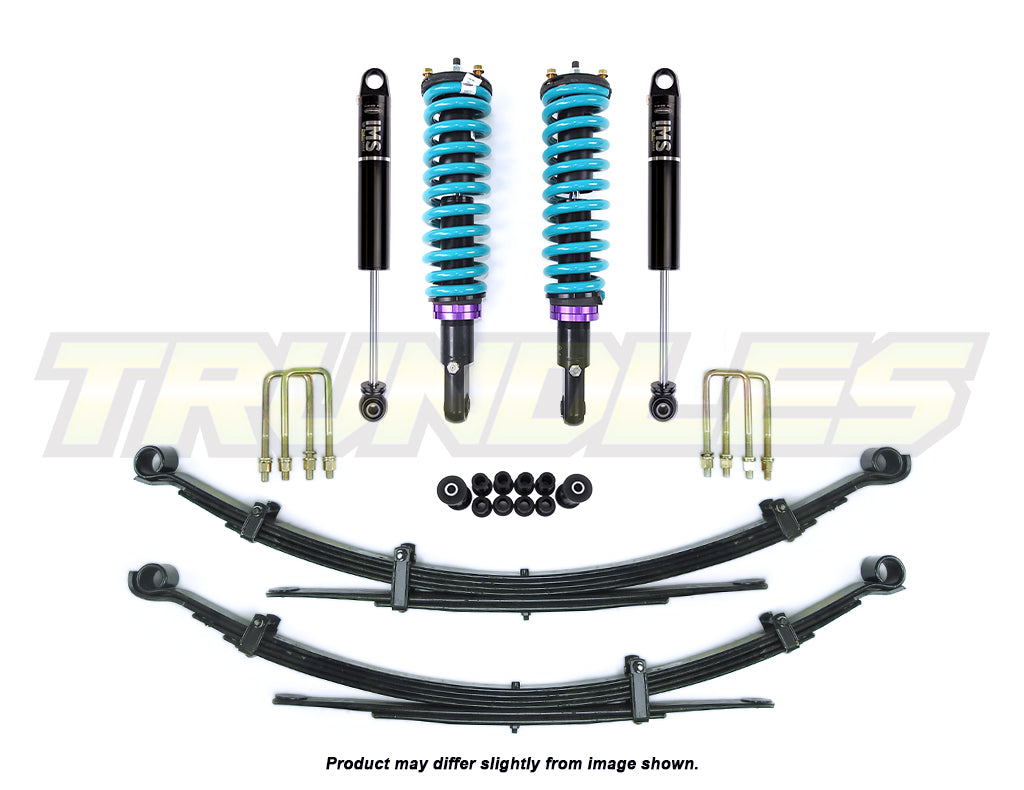

COMPONENTS

Front:
2x Dobinsons IMS Shocks - IMS59-50220
1x Pair Dobinsons Front Springs
2x Trundles Strut Mounts - TOP2

Rear:
2x Dobinsons IMS Rear Shocks - IMS59-50649
1x Pair Dobinsons Rear Leaf Springs
1x Dobinsons Leaf Bush Kit - PB59-1094K
2x Dobinsons U-Bolt Kits

EXTRAS

Dobinsons Rear Brake Adjuster (Required for NON-ABS vehicles) - BA59-002
Dobinsons Rear Grease-able Shackles - SK59-053
Dobinsons Rear Grease-able Pins - SP59-060
Trundles Spacer Diff Drop - HIL-005

For a lower replacement bush to fit IMS59-50220, please click here
