Profender 75mm Lift Kit with Adjustable Damping to suit Toyota Hilux N70 KUN26 2005-2015

Name: Profender 75mm Lift Kit with Adjustable Damping to suit Toyota Hilux N70 KUN26 2005-2015
Brand: Trundles Automotive
SKU: N7075PAG-1T
Price: 4130.0 NZD
Availability: InStock

N7075PAG-1T

Low stock

Select your front springs: 0-20Kg (Comfort Option) 50-100Kg (Comfort Option) 0-60Kg 70-90Kg

Select your rear springs: 0-100Kg Constant Load (50mm Lift) 280Kg Constant Load (50mm Lift) 450Kg Constant Load 0-100Kg Constant Load - Comfort Option (50mm - Parabolic) 0-100Kg Constant Load - Comfort Option (75mm - Parabolic)

$4,130.00

Tax included.

PRE-ORDER INFORMATION

If this Kit is showing as "Pre-Order" please complete the product enquiry form on this page to confirm which items are out of stock. Sometimes, there is only one item that is out of stock which may be able to be substituted to complete the kit.

Disclaimer: This product requires an LVV Certification to meet the current legal requirements for use on NZ public roads. A wheel alignment must be performed after the installation of upgraded suspension parts. It is the purchaser’s responsibility to ensure all products and the installation thereof meet current LVV requirements, where applicable.

Disclaimer: This product requires an LVV Certification to meet the current legal requirements for use on NZ public roads.

DETAILS
IMPORTANT!
COMPONENTS
EXTRAS

DETAILS

Profender 75mm Lift Kit with Adjustable Damping to suit Toyota Hilux N70 KUN26 2005-2015

Suits KUN26 3.0L T/D Models Only.

Important notes regarding lift kits can be found in the IMPORTANT tab! Please read thoroughly before making your order.

Please use the drop down menu to select the correct spring rates depending on your vehicles accessories.

Type: Hilux
Model: N70
Year: 2005 - 2015
Suspension Type: Coil Spring Front / Coil Spring Rear
Front Lift: 75mm Lift
Rear Lift: 50mm - 75mm Lift
Detail:
- KUN26 3.0L T/D Models Only.
- Twin Tube Adjustable Damping Shock Absorbers
- Front shocks come pre-assembled for ease of installation.

IMPORTANT!

The N70 Hilux sits nose down from factory, if you are chasing an even ride height you will need to lift the front of vehicle 75mm (3"), and lift the rear 50mm (2").

If you have a Single Cab or Petrol N70, we recommend that you lower the specifications of the coil spring by one part number for best result. If you are unsure on which options to select, please feel free to contact us here before purchasing.

When the front by 75mm, we strongly recommend you run an adjustable coil over. This allows you to dial in the ride height while also accommodating varying loads (future proofs your lift if you want to add a bull bar and/or winch in future), and gives you the ability to make any adjustments as necessary come certification time (to gain adequate droop travel etc.). You will also require Upper Control Arms and a Diff Drop at 75mm.

NON-ABS vehicles are required to have a Brake Adjuster installed when lifting the vehicle.

You may be able to achieve 575mm extended length on the shocks in some vehicles but this may cause plunge and bind issues.

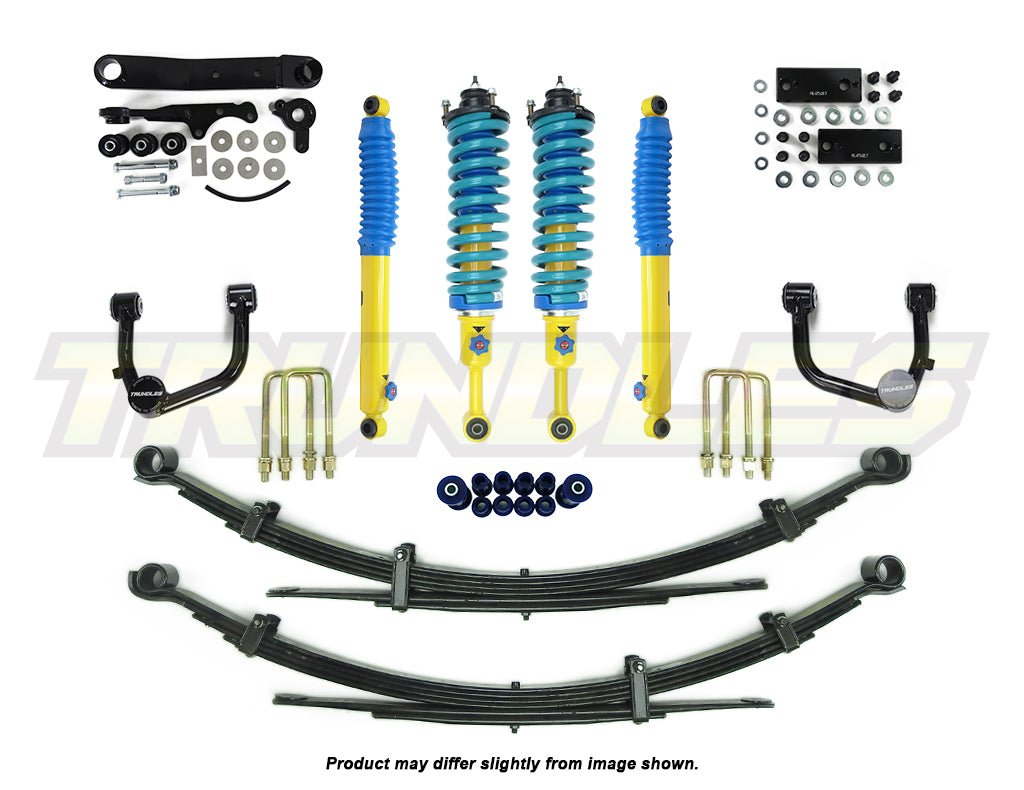

COMPONENTS

Front
2x Profender 4-Stage Damping Front Shocks - PAG-4680A75
1x Pair Dobinsons Front Springs
2x Trundles Strut Mounts - TOP2
1x Trundles Upper Control Arm Set - UCA3881HV2
1x Trundles Arm Style Diff Drop Kit - DDHIL-ARM
1x Trundles Front Swaybar Relocation - HIL-039

Rear
2x Profender 4-Stage Damping Rear Shocks - PAG-4046P
2x Dobinsons Rear Leaf Springs
1x Dobinsons Leaf Bush Kit - PB59-1094K
2x Dobinsons U-Bolt Kits

EXTRAS

Dobinsons Rear Grease-able Shackles - SK59-053
Dobinsons Rear Grease-able Pins - SP59-060
Dobinsons High Clearance CV Boot Kit - CV59-557K
Trundles Body Mount Weld-In Insert - OUTRIGGER-N70
