Dobinsons Basic IMS Height Adjustable Lift Kit to suit Toyota Hilux N70 2005-2015
- Price
- $1,399
Note: If this Kit is showing as "Pre-Order" please contact us to confirm which items are out of stock. Sometimes, there is only one item that is out of stock which may be able to be substituted to complete the kit. Contact us here.
Dobinsons Pre-Assembled IMS Height Adjustable Front Lift to suit Toyota Hilux N70 2005-2015
Important notes regarding lift kit below kit contents, please read thoroughly before making your order.

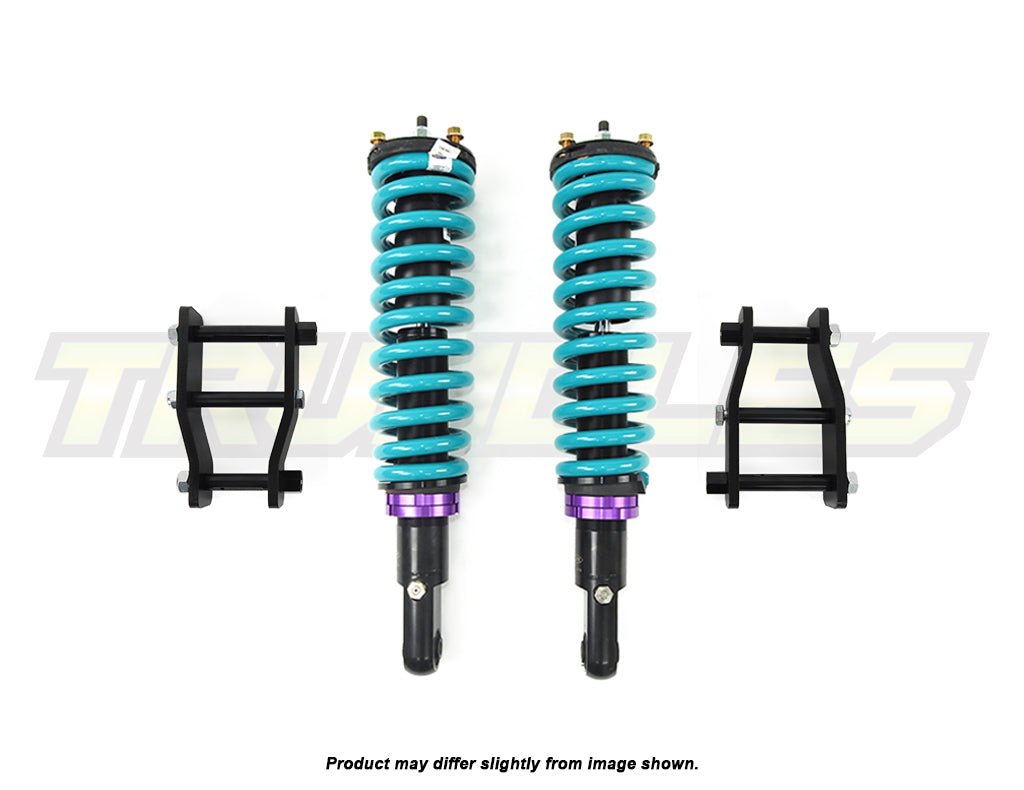

Kit Contains:
Front:
2x Dobinsons IMS Shocks - IMS59-50220
1x Dobinsons Springs - Please select your lift amount and load rating from the dropdown menu.
2x Strut mounts - TOP2
Front shocks come pre-assembled for ease of installation.
Rear:
1x Pair Trundles Extended Shackles
Details:
- These front struts are pre-assembled in our workshop and ready to go.
- Monotube Shock Absorber
- Adjustable Spring Seat
Optional Add-Ons:
Extended Ball Joints - HIL-001
Dobinsons Rear Greasable Pins - SP59-060
Trundles Spacer Diff Drop - HIL-005
or
Trundles Arm Style Diff Drop - DDHIL-ARM
Note 1: The N70 Hilux sits nose down from factory, if you are chasing an even ride height you will need to either lift only the front of vehicle 50mm (2"), or lift the front 25mm (1") higher than the rear. If you want full 50mm lift in rear, you will have to run 75mm (3") in front, please see note 2 for more info.
If you have a Single Cab or Petrol N70, we recommend that you lower the specifications of the coil spring by one part number for best result. If you are unsure on which options to select, please feel free to contact us here before purchasing.
Note 2: A maximum of 75mm lift setting will be used when pre-assembling. You will also require Upper Control Arms and a Diff Drop at 75mm. A 100mm Lift is achievable with extra components. This will most likely NOT pass a NZ certification as this will decrease the suspension droop travel, and is up to the customer to set these any higher than a 75mm Lift.
Note: For a lower replacement bush to fit IMS59-50220, please click here
Disclaimer: This product requires an LVV Certification to meet the current legal requirements for use on NZ public roads.
A wheel alignment must be performed after the installation of upgraded suspension parts. After a suspension lift, most ADAS (Advanced Driver Assistance Systems) equipped vehicles will require calibration.
It is the purchaser's responsibility to ensure the ADAS re-calibration is carried out by a specialised technician to guarantee the safety of the vehicle and its occupants.
