Dobinsons Pre-Assembled MRA Height Adjustable Front Lift to suit Toyota Hilux N70 2005-2015
- Price
- $1,800
Note: If this Kit is showing as "Pre-Order" please contact us to confirm which items are out of stock. Sometimes, there is only one item that is out of stock which may be able to be substituted to complete the kit. Contact us here.
- DETAILS
- IMPORTANT!
- COMPONENTS
- EXTRAS
Dobinsons Pre-Assembled MRA Height Adjustable Front Lift to suit Toyota Hilux N70 2005-2015
Important notes regarding lift kits can be found in the IMPORTANT tab! Please read thoroughly before making your order.
Looking for a quick and easy lift for your Hilux? We have the answer!
Simply unbolt your factory struts and replace with these direct bolt-in front pre-assembled shocks.
Please use the drop down menu to select your lift amount and the correct spring rates depending on your vehicles accessories.
Type: Hilux
Model: N70
Year: 2005 - 2015
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 50mm - 75mm Lift
Detail:
- Monotube Remote Reservoir Shock Absorbers
- Adjustable Spring Seat to allow fine tune lifting.
- These front struts are pre-assembled in our workshop and ready to go.
If you have a Single Cab or Petrol N70, we recommend that you lower the specifications of the coil spring by one part number for best result. If you are unsure on which options to select, please feel free to contact us here before purchasing.
The N70 Hilux sits nose down from factory, if you are chasing an even ride height you will need to lift the front of vehicle 25mm (1") higher than the rear. If you want a full 50mm lift in rear, you will have to run 75mm (3") in front.We will only the assemble these struts to a maximum of 75mm (3") lift. A 100mm lift is achievable but not recommended, it is also NOT likely to pass a NZ Certification. If you want to run 4", you will require Upper Control Arms, Diff Drop, a longer extended shock, and be prepared to replace CV's approx. every 5000kms. It is up to the customer to make adjustments of the struts to anything higher than 3".
KIT CONTAINS:

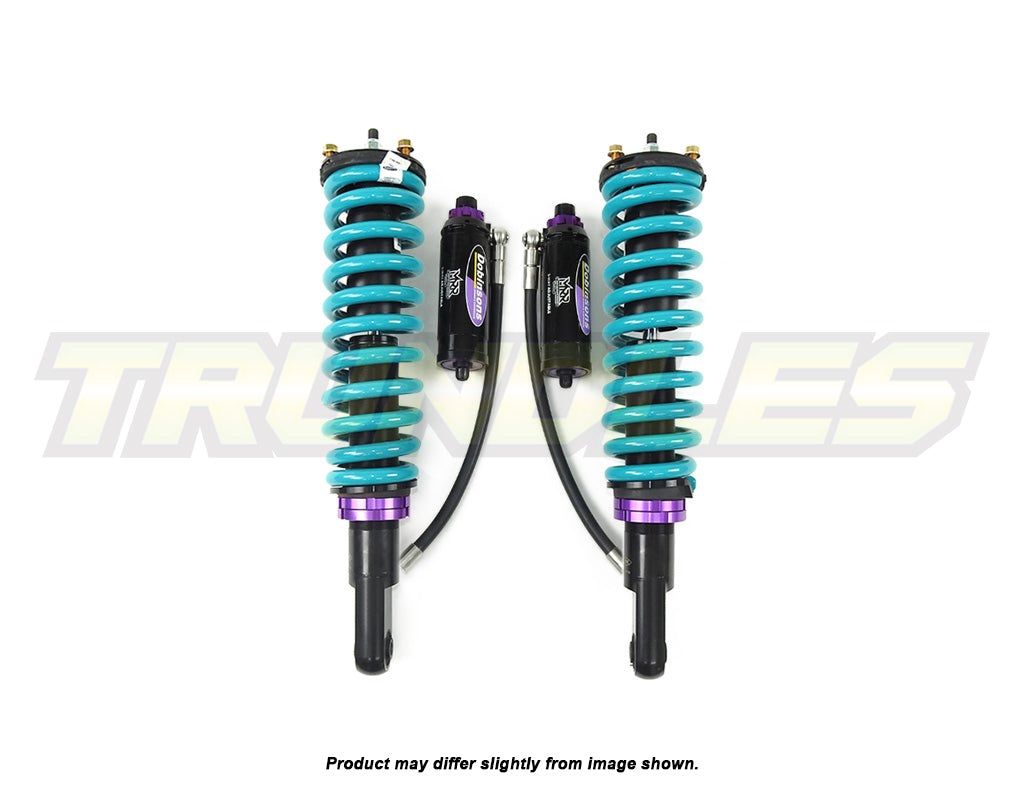

2x Profender Front Adjustable MRA Shock Absorbers - TSA4-4680A50
1x Pair Dobinsons Springs
2x Trundles Strut Mounts - TOP2
Extended Ball Joints
Arm Style Diff Drop
For a lower replacement bush to fit MRA59-A220, please click here
If you require fitting instructions for the MRA59-220 shock, please click here
Disclaimer: This product requires an LVV Certification to meet the current legal requirements for use on NZ public roads.
A wheel alignment must be performed after the installation of upgraded suspension parts. After a suspension lift, most ADAS (Advanced Driver Assistance Systems) equipped vehicles will require calibration.
It is the purchaser's responsibility to ensure the ADAS re-calibration is carried out by a specialised technician to guarantee the safety of the vehicle and its occupants.
