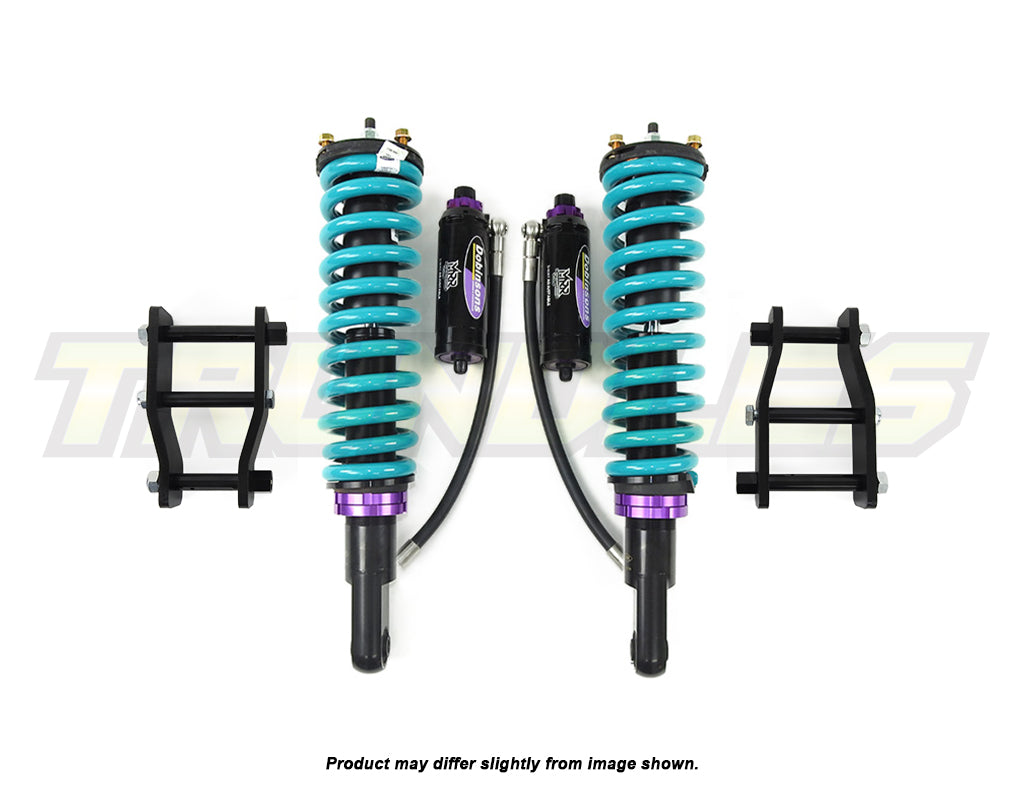

Dobinsons Basic MRA Height Adjustable Lift Kit to suit Toyota Hilux N70 2005-2015

Dobinsons Basic MRA Height Adjustable Lift Kit to suit Toyota Hilux N70 2005-2015

Important notes regarding lift kits can be found in the IMPORTANT tab! Please read thoroughly before making your order.

Please use the drop down menu to select the correct spring rates depending on your vehicles accessories.

Type: Hilux
Model: N70
Year: 2005 - 2015
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 50mm - 75mm Lift
Rear Lift: 25mm - 50mm Lift
Detail:
- Monotube Remote Reservoir Shock Absorbers
- Adjustable Spring Seat
- Front shocks come pre-assembled for ease of installation.

The N70 Hilux sits nose down from factory, if you are chasing an even ride height you will need to either lift only the front of vehicle 50mm (2"), or lift the front 25mm (1") higher than the rear. If you want full 50mm lift in rear, you will have to run 75mm (3") in front, please see below for more info.

If you have a Single Cab or Petrol N70, we recommend that you lower the specifications of the coil spring by one part number for best result. If you are unsure on which options to select, please feel free to contact us here before purchasing.

You will also require Upper Control Arms and a Diff Drop at 75mm. It is up to the customer to set these any higher than a 75mm Lift.

Front:
2x Dobinsons MRA Shocks - MRA59-A220
1x Pair Dobinsons Springs
2x Trundles Strut Mounts - TOP2

Rear:
1x Pair Trundles Extended Shackles

Extended Ball Joints - HIL-001
Dobinsons Rear Greasable Pins - SP59-060
Trundles Spacer Diff Drop - HIL-005
or
Trundles Arm Style Diff Drop - DDHIL-ARM

If you require a rebuild kit for MRA59-A220, please click here

For a lower replacement bush to fit MRA59-A220, please click here

If you require fitting instructions for the MRA59-220 shock, please click here
